Netbell-K-E2M Web-based Break Bell System
Netbell-K-E2M Web-based Break Bell System

Alternative Views:
The Netbell-K-E2M is a compact, self-contained design that was created with ease-of-use in
mind. The system is built on a TCP/IP platform with a built-in web server, which allows users to
access, control, and schedule the bell accurately and effectively over the network from any
computer using a standard web browser. All software and mounting hardware required for
installation and operation is included. With the easy-to-use bell schedule software, users can
easily add event schedules with different ringing duration for different event or import/export
their existing data using a simple text format. Now it is easy for schools, factories to have a fully
automated web-based timed alert system for signaling shift changes, general alarm and breaks.

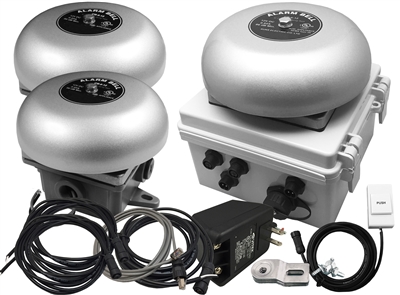

The Netbell-K-E2M features a built-in high quality 6” high volume bell (86dB) and a completely
wired web-based bell controller installed within a NEMA-rated box. There are two external bell
kits included in the system with a CP connector that provides quick connect/disconnect the
external bells to the Netbell-K-E2M server to cover a larger area. To add the external bell to the
Netbell server is incredibly easy, just connect the external bell kit with the provided bell cable,
plug the bell cable to the Netbell external bell CP connector, you are all set. The external bells
can be connected at 250 feet away with 18AWG cable (500 feet with 16AWG cable) to the
Netbell server. With the external push button switch you can ring the bells manually in the
events of emergency.
List Price: $1,558.00
Our Price: $1,402.00
Sale Price: $1,402.00
Savings: $156.00


Availability:: Usually Ships in 24 to 48 Hours
Product Code: 01-910-00049
Qty:

Description Technical Specs

Linortek NETBELL-K-E2M All-In-One Loud Automatic School Factory Warehouse Break Bell
System Programmable Bell Timer Web-based Bell Controller w/ Two External Bells and One Push
Button Switch to Ring Bell Manually for Emergency.
Features
  • • COMPACT AND SELF-CONTAINED: All-in-one automatic bell system with the hardware and
  • software you need to control your timed alert system. No extra software or designated
  • computer required. Adding schedules from any computer on your network without having to go
  • through the firewall

  • • FULLY PROGRAMMABLE: Up to 500 programmable event schedules, each event can be set to a
  • different duration for different break time, the bell schedules can be imported and exported
  • from existing data in .txt format

  • • EASY TO USE: It’s ready to go out of the box, you need only connect the unit to power and the
  • existing network with the provided cables, access the Netbell web interface to setup and add
  • schedules with a standard web browser over the network

  • • EASY TO INSTALL: Use as either a network or a standalone device, connect to network or directly
  • to computer for initial setup then it will work as scheduled. With the built-in Real Time Clock and
  • user settable NTP server, you can accurate control of when the bells ring (HH:MM:SS, SUNDAYSATURDAY)
  • or pull the time from your existing NTP server

  • • EASY TO EXPAND: Two additional relay outputs with a CP connector that provides quick
  • connect/disconnect two certified bells if you have larger areas need to be covered (external bells
  • are not included, purchased separately). With the built-in remote function, you can ring multiple
  • bells at multiple buildings cross a network from one simple web interface without the need of
  • hard-wiring the bells to a central control station (a slave controller Koda 100 will be needed for
  • the remote locations to receive signals)
